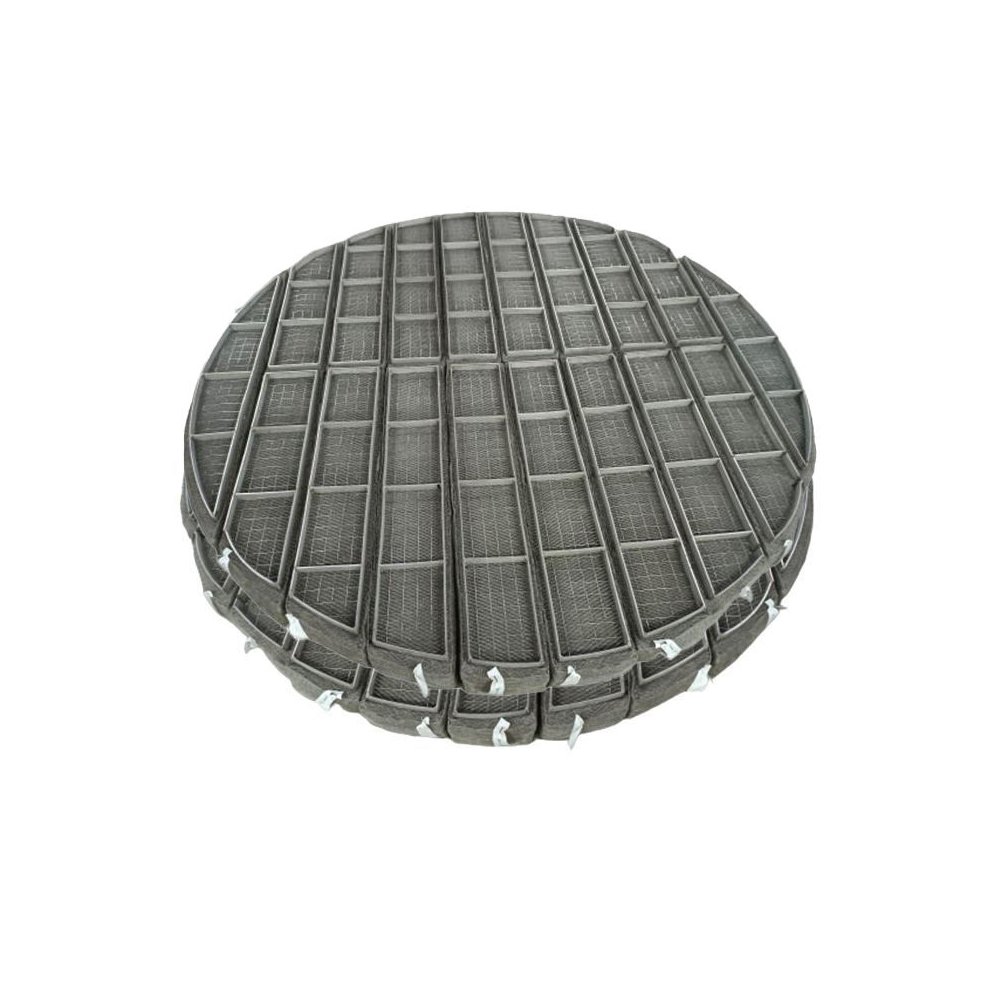

WANSON FILTER manufactures high-performance Knitted Mesh Filter engineered from interlocking wire loops to provide a tortuous path for fluid and gas separation. Our knitted wire mesh products, often supplied as compressed elements or demister pads, offer superior efficiency in capturing fine liquid mist and solid particles in industrial processes.
High Efficiency Mist Elimination: The complex, multi-layer structure creates a large surface area for liquid droplets to coalesce and separate from gas streams effectively (e.g., in distillation columns).
Customizable Density & Form: We offer variable compression ratios to control filtration efficiency and pressure drop precisely. Available in custom pads, rolls, or rings.
Durable & Corrosion Resistant: Available in SS304, SS316, and exotic alloys like Monel or Hastelloy to withstand highly aggressive chemical environments and high temperatures.
Versatile Functionality: Beyond filtration, our knitted mesh is also widely used for vibration dampening, noise reduction, and EMI/RFI shielding.
Our knitted mesh filters are essential in petrochemical processing, wastewater treatment vapor recovery, and automotive exhaust systems. WANSON FILTER provides bespoke solutions tailored to fit existing vessel diameters and flow dynamics.

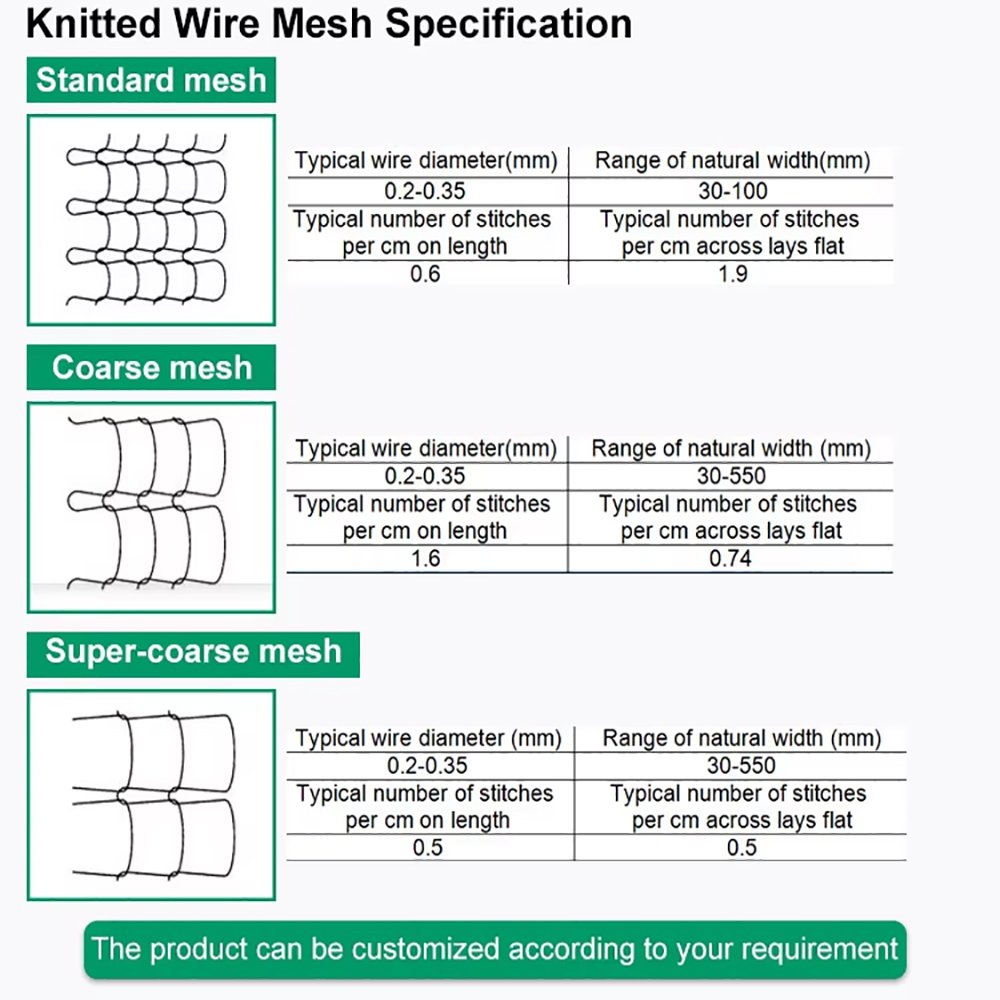

Details
| Material | STAINLESS STEEL: 304, 304L, 316L 430, |
|---|---|
| Hole Size | from the (2mm X 3 mm) to the (4mm X 5mm) then (12mm X 6mm) |
| Wire Diameter | 0.07mm — 0.55mm / 0.002″ — 0.030″ |
| Roll Width | 1″ – 43” |
| Weight / Density | 0.011” ,0.095”, 0.008” |
| Standard Forms | Standard Type; High-Efficiency Type; High Wear Type; Damping Type |
| Woven Style | Single Wire Woven; Double Wires Woven; Weveral Wires Woven |
